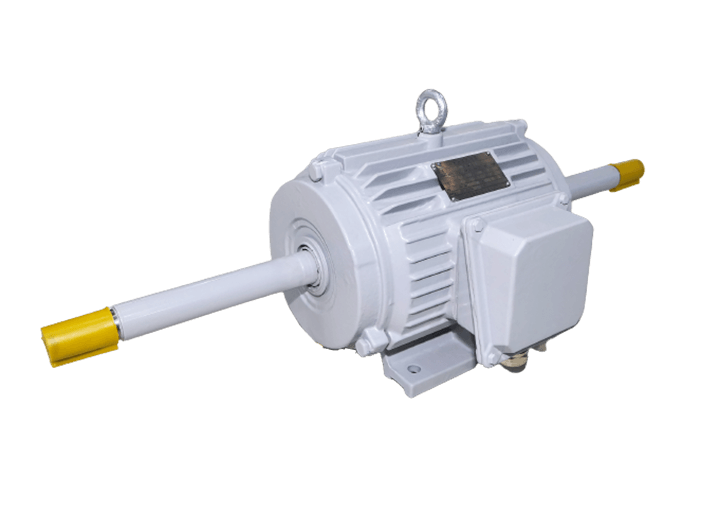

Centrifugal Fan Motor For Rail Train Air Conditioner

Main Parameters:

Standard: GB18613-2012,ICE60034-30;

Applicable train type: hard-seat train;

Rated Power: 1.8kW/1.3kW;

Speed: 1430/940rpm;

Voltage and Frequency: 380V / 50Hz;

Rated current: 4.4/3.9A;

Degrees of protections: IP56;

Degrees of Insulation: F;

Installation Method: B3;

Rated Air Volume: 4500/3000m3/h;

Rated Pressure: J400/J200Pa;

Noise: ≤68 dB;

Material quality: Q235;

Applicable air conditioning unit: KLD29 series;

Applicable train type: hard-seat train.



Consult Contact

Product Introduction:

In the field of animal husbandry fan motors, Surene meets the requirements of different levels of animal husbandry users for fan motors by understanding the needs of users, through research on the special application environment of animal husbandry, and according to the requirements of different customers for air flow, etc. Motors with different efficiencies from IE1-IE4 are designed:
*Fan Motor Series for Pheasantry: Regular Motor and Convertor- fed Motor.
(Installation Method: B3, B5, B14, Power: 0.25KW~1.5KW)
*Fan Motor Series for Hoggery: Regular Motor and Convertor- fed Motor, High Negative Pressure Fan Motor.
(Installation Method: B3, B5, B14, Power: 0.25KW~2.2KW)
*Permanent Magnet Motor Series (Inner and Outer Rotor): 0.37KW~2.2KW
* Fan Motor for Cowshed: 0.25KW~0.4KW.



The double output shaft motor specially designed and developed for train ventilation system has the characteristics of high efficiency, safety and energy saving.

Ensure the comfort and good ventilation during train operation.

Professionally equipped with motors for rail traffic fans, high efficiency, energy saving, safety and stability.
