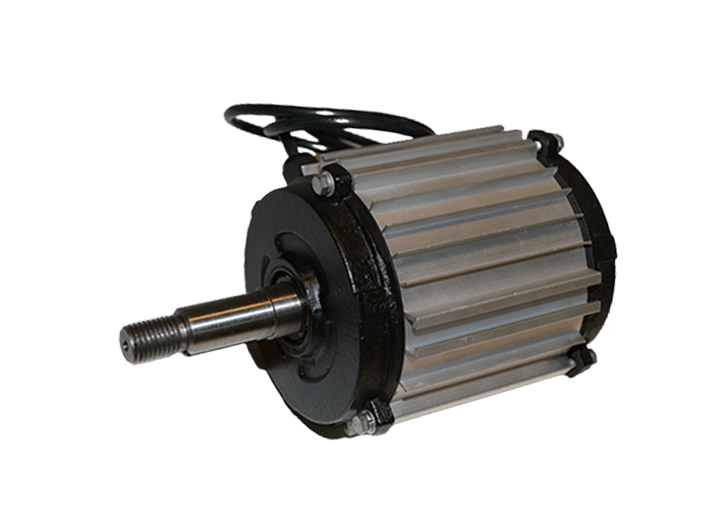

Direct-Drive Fan Motor For Animal Husbandry

Main Parameters:

Model No. Voltage (V) Frequency (Hz) Eff% IP Insulation Class
YE2-71M1-4-0.25KW 380-415 50/60 IE1-IE4 IP55 F
YE2-90S1-6-0.37KW 380-415 50/60 IE1-IE4 IP55 F
YE2-90S-6-0.75KW 380-415 50/60 IE1-IE4 IP55 F
YE2-100L2-8-1.1KW 380-415 50/60 IE1-IE4 IP55 F
YE2-100L3-8-1.5KW 380-415 50/60 IE1-IE4 IP55 F
YE2-112M1-8-1.8KW 380-415 50/60 IE1-IE4 IP55 F
YE2-112M2-8-2.2KW 380-415 50/60 IE1-IE4 IP55 F



Consult Contact

Product Introduction:

In the field of animal husbandry fan motors, Surene meets the requirements of different levels of animal husbandry users for fan motors by understanding the needs of users, through research on the special application environment of animal husbandry, and according to the requirements of different customers for air flow, etc. Motors with different efficiencies from IE1-IE4 are designed:
*Fan Motor Series for Pheasantry: Regular Motor and Convertor- fed Motor.
(Installation Method: B3, B5, B14, Power: 0.25KW~1.5KW)
*Fan Motor Series for Hoggery: Regular Motor and Convertor- fed Motor, High Negative Pressure Fan Motor.
(Installation Method: B3, B5, B14, Power: 0.25KW~2.2KW)
*Permanent Magnet Motor Series (Inner and Outer Rotor): 0.37KW~2.2KW
* Fan Motor for Cowshed: 0.25KW~0.4KW

Feature:

√ High precision, low loss and high structural reliability.

√ The after service cost is ultra-low.

√ Low noise, and suitable for premium products.
