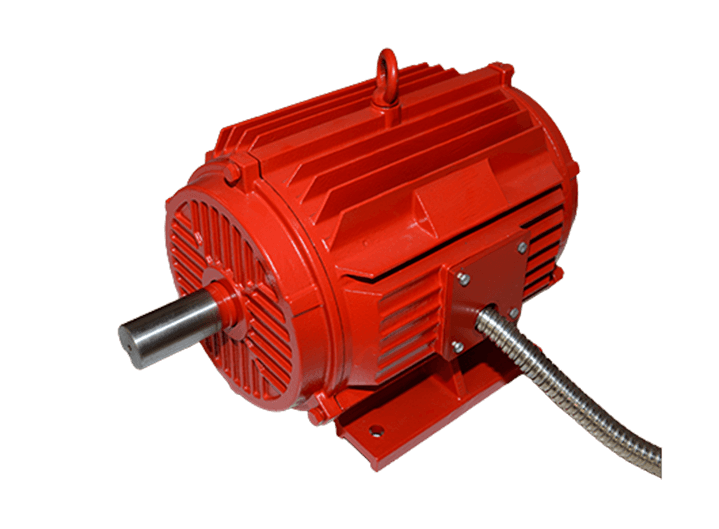

High Temperature Fire-Fighting Motor

Main Parameters:

Standard: GB18613-2012,ICE60034-30;

Frame Size: H80-355mm;

Rated Power: 0.75kW-375kW;

Voltage :  220/380V,380/660V,220/340V,220/440V,400/415V;

Frequency :50Hz、60Hz;

Poles: 2P-8P;

Duty: S1;

Degrees of protections: IP55;

Degrees of Insulation: F(120℃)、H(18 0℃);

Installation Method: B3、B5、B35、V1;

Ambient Temperature: ≤140℃;

Relative humidity should be less than 98%;

Altitude should be lower than 1000m above sea level;

Cooling Method: IC411;

Fire Temperature: 300/4h, 400/2h.

Consult Contact

Product Introduction:

Surene high-temperature motor adopts advanced design technology and is made of high-temperature resistant insulating materials. It can ensure that the motor runs safely in a high-temperature environment without aging and burning. The motor adopts high-precision bearings, special bearing grease, less noise, less vibration. Its motor performance is designed according to the characteristics of fan and pump loads, which can save energy and insulation structure. Adopting reinforced insulation, it can run in a continuous forward and reverse cycle for a long time under the water vapor atmosphere of high-temperature and high-humidity wood precipitates, so as to ensure reliable insulation and improve service life and improve motor’s water-proof, steam-proof and wood-dust-proof ability.

High temperature motors are widely used in reflow soldering machines, wave soldering machines, shoe machines, kitchen equipment, experimental instruments, packaging machinery, oven equipment, tunnel furnaces, etc.

Please note:When the motor runs for 3500 hours, it should be filled with high temperature grease (dropping point temperature≥200℃)
