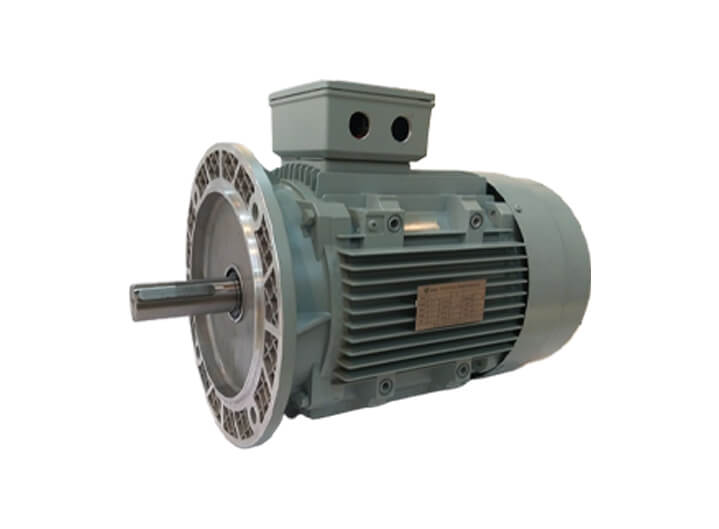

MS Aluminum Three-Phase Asynchronous Motor IE2

Main Parameters:

Standard: GB18613-2012,ICE60034-30;

Frame Size: H80-160mm;

Rated Power: 0.75kW-18.5kW;

Degree of Energy Efficiency: IE2、Grade 3 (GB18613-2012);

Voltage and Frequency: 380V / 50Hz;

Degrees of protections: IP55;

Degrees of Insulation/ Temperature Rise: F/B;

Installation Method: B3、B5、B35、V1;

Ambient Temperature: -15℃ to +40℃;

Relative humidity should be less than 90%;

Altitude should be lower than 1000m above sea level;

Cooling Methods:IC411;

Vibration: A Class.

Consult Contact

Product Introduction:

MS series aluminum-frame three phase asynchronous motors are developed from Y2 series three phase asynchronous motors, since aluminum-alloy material has been introduced into its frame, end brackets, terminal box and removable feet,MS series aluminum-frame motors owns a beautiful appearance and a smooth surface. Despite the dimensions and output power of MS series aluminum-frame motors are the same as those of Y2 series three phase asynchronous motors.

MS series aluminum-housing motors have lots of futures such as high efficiency and energy saving, high starting torque, excellent performance, low noise and vibration, compact structure, high reliability, easy operation and etc.

Operating conditions of MS series aluminum-frame motors are identical with Y2 series motors, while efficiency class are in line with Chinese National standard GB 18613-2012 class IlI, simultaneously, we supply MS series aluminum-frame motors in conformity with YE3 standard for customers.
