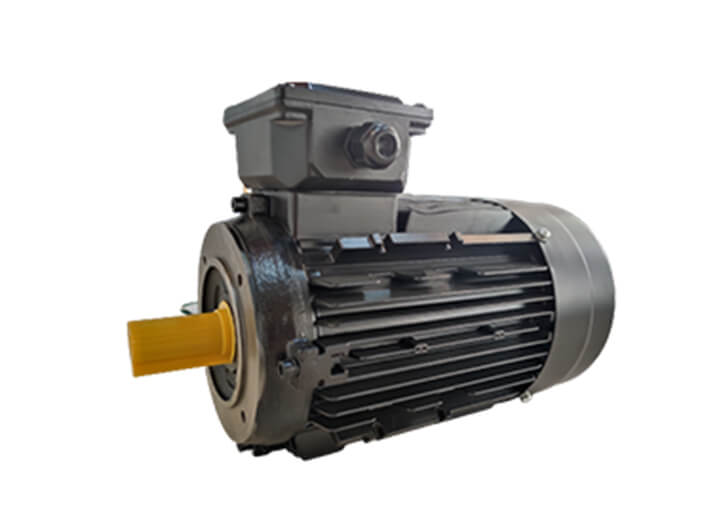

Multi-Stage Pump Motor

Main Parameters:

Standard: GB18613-2012,ICE60034-30;

Frame Size: H80-160mm;

Rated Power: 0.75kW-18.5kW;

Voltage and Frequency: 380V / 50Hz;

Duty: S1;

Degrees of protections: IP55;

Degrees of Insulation/ Temperature Rise: F/B;

Installation Method: V1、V18;

Ambient Temperature: -20℃ to +40℃;

Relative humidity should be less than 90%;

Altitude should be lower than 1000m above sea level;

Cooling Methods:IC411;

Wiring mode: less than 4KW 220VY/380VY;

4KW and above 380VY.

Consult Contact

Product Introduction:

Surene pump motors can be applied to various pump bodies such as centrifugal pumps, jet pumps, and turbo pumps. At present, it maintains close cooperation with well-known brands in the world pump industry. With the design of lengthened shaft, different flange installation methods can be selected according to the structural requirements of the pump body. Iron shell, aluminum shell, and steel shell are available in various shapes.

Energy conservation and emission reduction has become the main content of China’s economic development plan, especially for power, steel, non-ferrous metals, petrochemical, water treatment and other industries with high energy consumption companies put forward more stringent emission reduction policies. As the fluid conveying equipment in the industrial center, the water pump occupies the main part of energy consumption, and it has become the main problem to be solved in the energy saving operation. The most common way to drive the water pump is to drive it with an electric motor. The energy saving method of the pump is mainly to make the pump unit (pump, prime mover and conversion part) run at the highest power, so that the electric energy consumed by the external input is reduced to the lowest point. The energy saving of the pump is a comprehensive technology, which involves the energy saving of the pump itself, the energy saving of the system and the operation of the application management.
