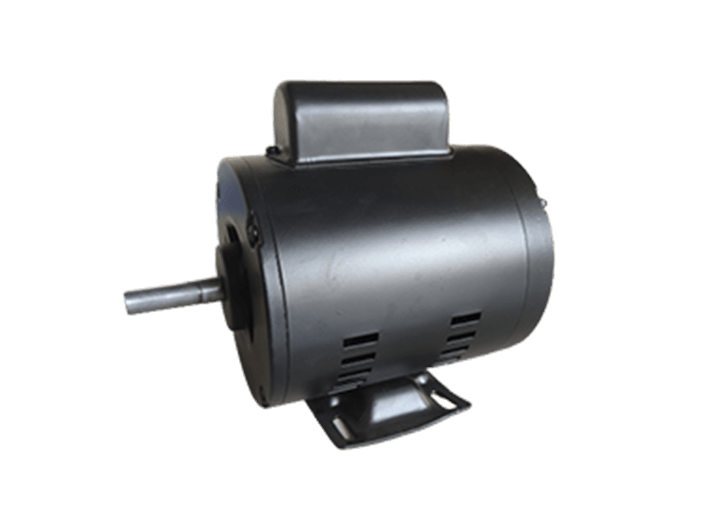

YY Series Running Capacitor Induction Motor

Main Parameters:

Rated Power: 0.12-1.5KW/ 0.18-1.5KW/ 0.55KW-0.75KW/ 0.37-2.2KW;

Rated Voltage: 110V/ 220V/ 230V/ 240V;

Frequency: 50Hz/ 60Hz;

Frame Size: H63-H132/ H80-H132;

Poles: 2P/ 4P/ 6P/ 8P;

Insulation Degree: B/ F;

Protection Degree: IP54/ IP55;

Cooling Method: IC411.

Consult Contact

Product Introduction:

YL series single phase motors, one of our latest developed products, applied European standard. The motor frame, front and back end brackets are made of aluminum-alloy die-casting while the terminal box is made of engineering plastics. It has a beautiful modeling, compact structure, light weight and removable feet with various mounting mode available, which is convenient for using.

YL series single phase electric motors have a lot of advantages including high efficiency, large starting torque, especially YY series with starting torque one time higher than standard Chinese motors, excellent performance, low noise and vibration, and so on. The mounting dimension and power rate is in conformity to the IEC standard, They are widely used on small machineries such as reducers, air conditioners, pumps, medical equipments, etc. They are particularly suitable for the sites with single phase power.
